Product details
- Intel® Xeon® 6 SP
- 4x Or 2x NIC Slots
- 1024GB DDR5
NEW

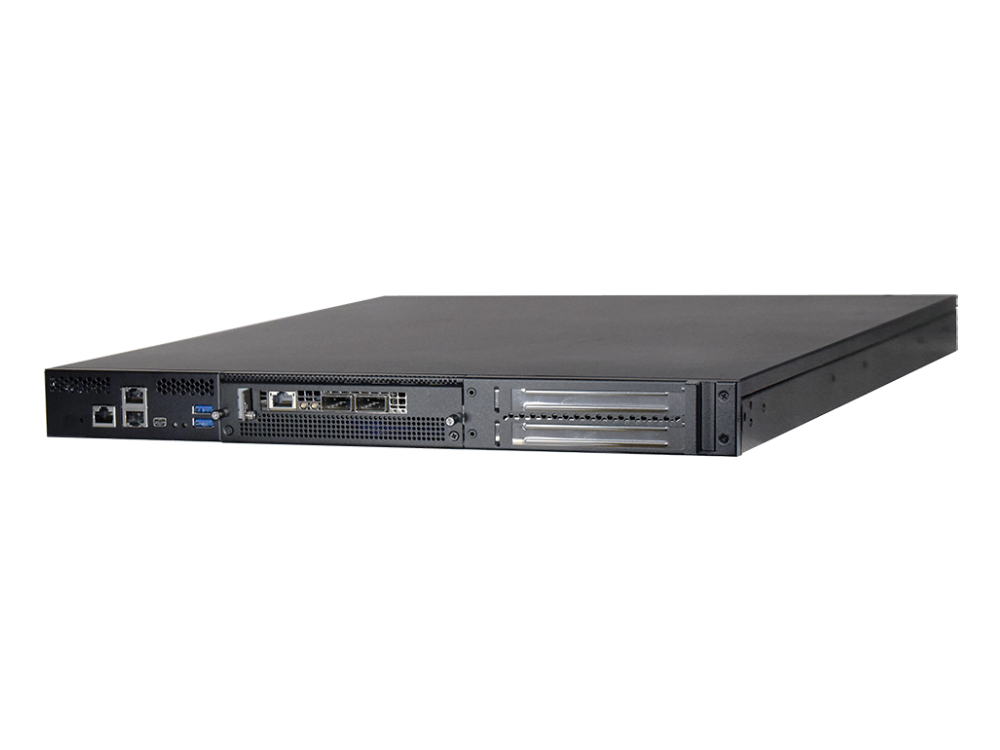

High Performance 1U Rackmount Network Platform Powered By Intel® Xeon® 6 SP Processor With P-cores & E-cores
- Intel® Xeon6 ® Processor Family Sierra Forest-SP (E-core)/Granite Rapids-SP (P-core)/Clearwater Forest-SP (E-core)

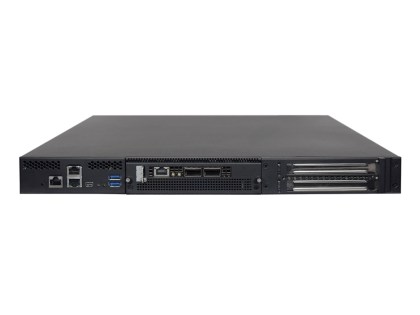

- 2x GbE RJ45, 1x RJ45 Console, 4x Or 2x NIC Module Slots
- Max. 1024GB DDR5 6400MHz RDIMM
- 2x USB 3.0, 1x M.2 NVMe, 1x U.2 NvME SSD (Optional)
- Intel® QuickAssist Technology (By SKU)
Overview
The NCA-5550, built with Intel® Xeon® 6 SP Processor with P-cores & E-cores, is designed for cloud-native, hyperscale, parallel tasks and compute-intensive workloads.
Specifications
| Platform | |
| Form Factor | 1U 19” Rackmount |
| Processor Options | Intel® Xeon6 ® Processor Family Sierra Forest-SP (E-core)/Granite Rapids-SP (P-core)/Clearwater Forest-SP (E-core) |
| CPU Socket | LGA4710 For Xeon 6 SP Processor |
| Chipset | N/A |
| Security Acceleration | Intel® QuickAssist Technology (By SKU) |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | DDR5 6400 MT/s REG-DIMM |
| Max. Capacity | 1024GB |
| Socket | 8 x 288-pin DIMM |
| Networking | |
| Ethernet Ports | 2 x 1Gb RJ45 Intel® i210 |
| Bypass | Depends On NIC Module Specifications |
| NIC Module Slot | 4 Or 2 (By SKU) |
| LOM | |
| IO Interface | 1x RJ45 |
| OPMA Slot | Yes, For IAC-AST2601 |
| I/O Interface | |
| Reset Button | 1 |
| LED | Power |
| Power Button | 1 x ATX Power Switch |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| LCD Module | N/A (Optional) |
| Display | 1 x Mini Display Port |
| Power Input | AC Power Inlet On PSU |
| Storage | |
| HDD/SSD Support | 1 x U.2 NVMe |
| Onboard Slots | 1 x M.2 2280 NVMe |
| Expansion | |
| PCIe | 1 x 3/4” PCIe Card Support (By SKU) |
| mini-PCIe or M.2 | N/A |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | TPM 2.0 (Optional) |
| Cooling | |
| Processor | Passive CPU Heatsink |

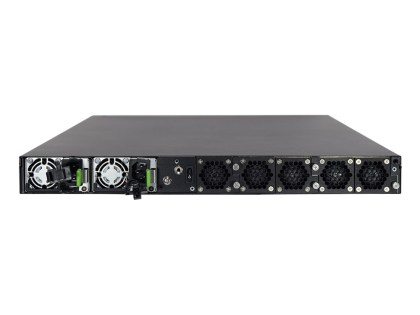

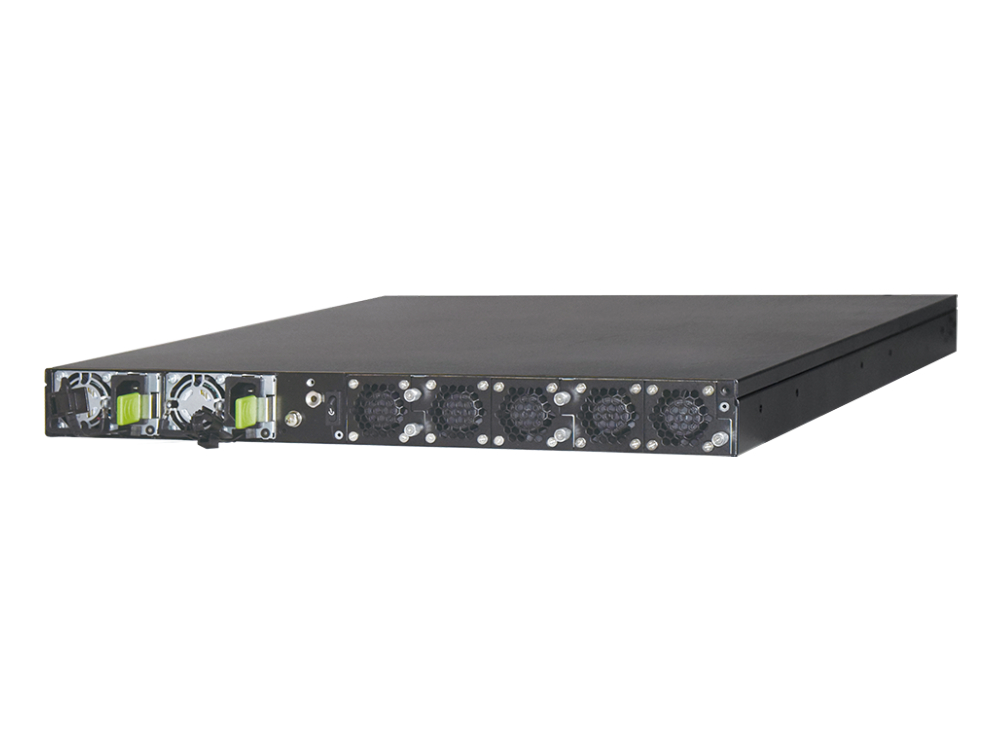

| System | 5 x Smart Fans |
| Environmental Parameters | |
| Temperature | 0~40ºC Operating -40~70ºC Non-Operating |
| Humidity (RH) | 5~90% Operating 5~95% Non-Operating |
| System Dimensions | |
| (WxDxH) | 438 x 670 x 88 mm |
| Weight | 25 kg |
| Package Dimensions | |
| (WxDxH) | - |
| Weight | - |
| Power | |
| Type / Watts | 1200W CRPS AC PSU |
| Input | AC 100~127V @50~60Hz |
| Certification | |
| Approvals and Compliance | RoHS, CE/FCC Class A, UKCA, UL |
Order Information
| NCA-5550A | Intel® Xeon®6 -SP Processosr, 4x NIC Slots, 2x GbE RJ45, 1x RJ45 Console, 2x USB 3.0, 2x 1200W 1+1 Redundancy PSU, 5x Individual Hot-swappable Fans |
| NCA-5550B | Intel® Xeon®6 -SP Processosr, 2x NIC Slots, 2x GbE RJ45, 1x RJ45 Console, 2x USB 3.0, 2x 1200W 1+1 Redundancy PSU, 5x Individual Hot-swappable Fans, Support For 1x 3/4”PCIe Card |
All product specifications are subject to change without prior notice
